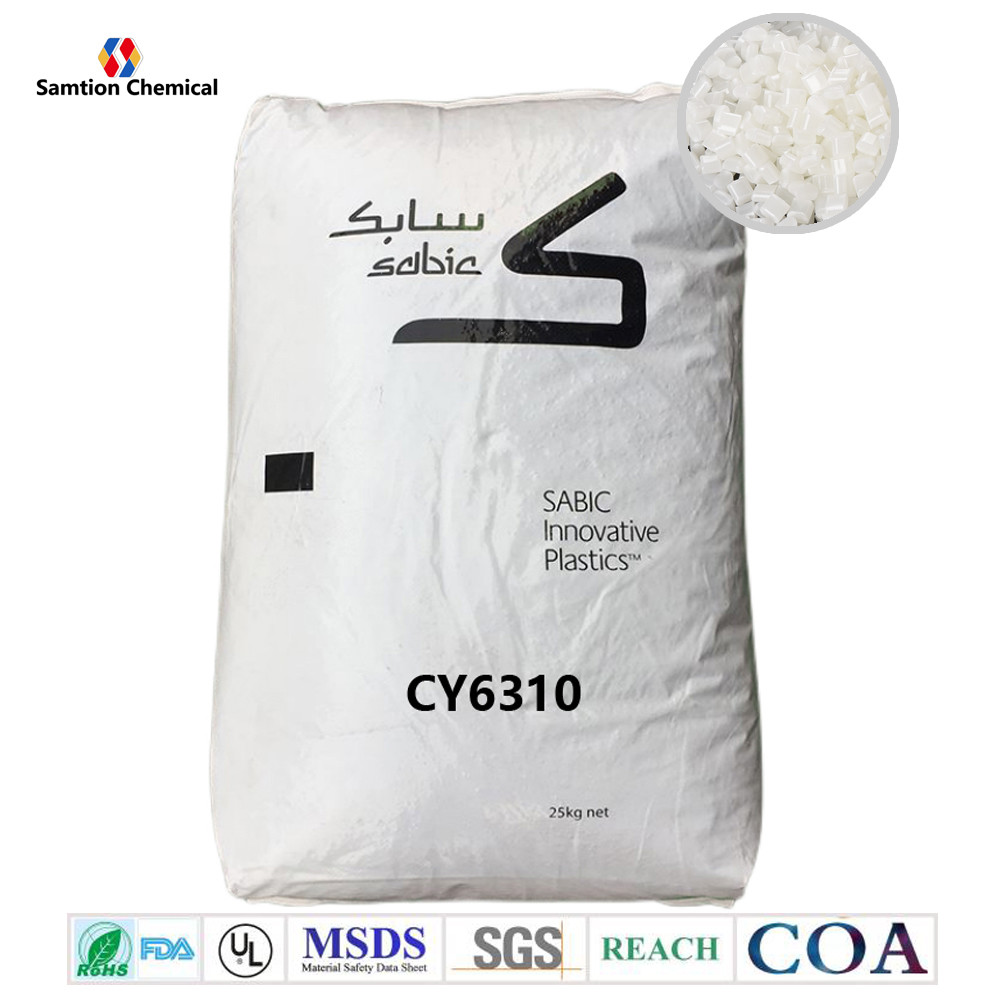

SabikCycoloy CY6310resin adalahcampuran PC/ABS tahan api menggunakan sistem tahan api non-brominasi dan non-klorinasi,menawarkan stabilitas hidrolisis dan aliran yang sangat baik / keseimbangan dampak untuk berbagai dinding tipis atau aplikasi ukuran besar termasuk peralatan bisnis, kandang, antara lain.
| Properti Tipikal (1) | |||
| Mekanis | Nilai | Satuan | Standar |
| Tekanan tarik, yld, tipe I, 50 mm/menit | 63 | MPa | ASTM D 638 |
| Tekanan tarik, brk, tipe I, 50 mm/menit | 50 | MPa | ASTM D 638 |
| Tekanan tarik, yld, tipe I, 50 mm/menit | 4.2 | % | ASTM D 638 |
| Tekanan tarik, brk, tipe I, 50 mm/menit | > 50 | % | ASTM D 638 |
| Tensile Modulus, 5 mm/min | 2700 | MPa | ASTM D 638 |
| Tekanan lentur, yld, 1,3 mm/menit, rentang 50 mm | 101 | MPa | ASTM D 790 |
| Flexural Modulus, 1,3 mm/menit, rentang 50 mm | 2700 | MPa | ASTM D 790 |
| Tekanan tarik, hasil, 50 mm/menit | 63 | MPa | ISO 527 |
| Tekanan tarik, pecah, 50 mm/menit | 51 | MPa | ISO 527 |
| Tekanan tarik, hasil, 50 mm/menit | 4.4 | % | ISO 527 |
| Tekanan tarik, putus, 50 mm/menit | > 50 | % | ISO 527 |
| Modulus tarik, 1 mm/menit | 2700 | MPa | ISO 527 |
| Tekanan lentur, hasil, 2 mm/menit | 91 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/menit | 2650 | MPa | ISO 178 |
| Dampak | Nilai | Satuan | Standar |
| Izod Dampak, bertanduk, 23°C | 600 | J/m | ASTM D 256 |
| Izod Dampak, bertanduk, -30°C | 115 | J/m | ASTM D 256 |
| Dampak Multiaxial | 105 | J | ISO 6603 |
| Energi Total Dampak Instrumen, 23°C | 65 | J | ASTM D 3763 |
| Izod Dampak, tidak bergaris 80*10*3 +23°C | NB | kJ/m2 | ISO 180/1U |
| Izod Impact, bernotas 80*10*3 +23°C | 50 | kJ/m2 | ISO 180/1A |
| Izod Impact, bertanda 80*10*3 -30°C | 13 | kJ/m2 | ISO 180/1A |
| Charpy 23°C, V-notch Edgew 80*10*3 sp=62mm | 55 | kJ/m2 | ISO 179/1eA |
| Charpy -30°C, V-notch Edgew 80*10*3 sp=62mm | 14 | kJ/m2 | ISO 179/1eA |
| Charpy 23°C, Unnotch Edge 80*10*3 sp=62mm | NB | kJ/m2 | ISO 179/1eU |
| Termal | Nilai | Satuan | Standar |
| Vicat Softening Temperature, Tingkat B/50 | 109 | °C | ASTM D 1525 |
| HDT, 0,45 MPa, 3,2 mm, tidak diiris | 100 | °C | ASTM D 648 |
| HDT, 1,82 MPa, 3,2 mm, tidak diiris | 88 | °C | ASTM D 648 |
| CTE, -40°C sampai 40°C, aliran | 6.8E+00 | 1/°C | ASTM E 831 |
| CTE, -40°C sampai 40°C, xflow | 7.E+00 | 1/°C | ASTM E 831 |
| CTE, -40°C sampai 40°C, aliran | 6.8E+00 | 1/°C | ISO 11359-2 |
| CTE, -40°C sampai 40°C, xflow | 7.E+00 | 1/°C | ISO 11359-2 |
| Uji tekanan bola, 75°C +/- 2°C | Pergi | - | IEC 60695-10-2 |
| Uji tekanan bola, perkiraan maksimum | 95 | °C | IEC 60695-10-2 |
| Vicat Softening Temperature, Tingkat B/50 | 109 | °C | ISO 306 |
| Vicat Softening Temperature, Tingkat B/120 | 111 | °C | ISO 306 |
| HDT/Af, 1,8 MPa Flatw 80*10*4 sp=64mm | 90 | °C | ISO 75/Af |
| FISIK | Nilai | Satuan | Standar |
| Gravitasi Spesifik | 1.16 | - | ASTM D 792 |
| Penyusutan jamur, aliran, 3,2 mm | 0.4 - 0.6 | % | Metode S-Plastics |
| Tingkat Aliran Peleburan, 250°C/2,16 kgf | 16 | g/10 menit | ASTM D 1238 |
| Tingkat Aliran Peleburan, 260°C/2,16 kgf | 20 | g/10 menit | ASTM D 1238 |
| Kepadatan | 1.16 | g/cm3 | ISO 1183 |
| Absorpsi air, (23°C/sat) | 0.6 | % | ISO 62 |
| Penyerapan Kelembaban (23°C / 50% RH) | 0.2 | % | ISO 62 |
| Tingkat Volume Peleburan, MVR pada 260°C/2,16 kg | 19 | cm3/10 menit | ISO 1133 |
| Listrik | Nilai | Satuan | Standar |
| Pemicu Hot Wire {PLC) | 3 | Kode PLC | UL 746A |
| High Ampere Arc Ign, permukaan {PLC} | 0 | Kode PLC | UL 746A |
| Indeks Pelacakan Perbandingan | 575 | V | IEC 60112 |
| Karakteristik Api | Nilai | Satuan | Standar |
| Sesuai UL, Kelas Api 94V-2 (3) | 0.75 | mm | UL 94 oleh GE |
| Sesuai UL, Kelas Api 94V-0 (3) | 1.5 | mm | UL 94 oleh GE |
| Sesuai UL, 94-5VA rating (3) (((4) | 2.9 | mm | UL 94 oleh GE |
| UL Compliant, 94-5VB Rating (3) | 2.3 | mm | UL 94 oleh GE |
| UL diakui, 94V-2 Flame Class Rating (3) | 0.75 | mm | UL 94 |
| UL diakui, 94V-0 Flame Class Rating (3) | 1.5 | mm | UL 94 |
| UL diakui, 94-5VA rating (3) | 2.9 | mm | UL 94 |
| UL diakui, 94-5VB rating (3) | 2.3 | mm | UL 94 |
| Glow Wire Flammability Index 960°C, melewati pada | 3 | mm | IEC 60695-2-12 |
| Suhu pembakaran kawat bercahaya, 1,0 mm | 800 | °C | IEC 60695-2-13 |
| Suhu pembakaran kawat bercahaya, 2,0 mm | 800 | °C | IEC 60695-2-13 |
| Suhu pembakaran kawat bercahaya, 3,0 mm | 800 | °C | IEC 60695-2-13 |
| Indeks Oksigen (LOI) | 30 | % | ISO 4589 |
| Sumber GMD, terakhir diperbarui:08/16/2007 | |||
| Parameter | ||
| Pencetakan Injeksi | Nilai | Satuan |
| Suhu Pengeringan | 90 - 100 | °C |
| Waktu Pengeringan | 2 - 4 | jam |
| Kandungan Kelembaban Maksimal | 0.02 | % |
| Suhu Peleburan | 250 - 280 | °C |
| Suhu Nozzle | 230 - 270 | °C |
| Suhu depan - Zona 3 | 240 - 280 | °C |
| Tengah - Zona 2 Suhu | 230 - 270 | °C |
| Bagian belakang - Zona 1 Suhu | 210 - 240 | °C |
| Suhu Hopper | 60 - 80 | °C |
| Suhu Cetakan | 60 - 90 | °C |
| Sumber GMD, terakhir diperbarui:08/16/2007 | ||
